Templates and Flow Builder

Use a template when it matches the system and direction of data. Use Flow Builder to review the result or to build a custom integration.

Fork a template

1. Open Templates and find the template card.
2. Select Use Template on that card.
3. If Fork & Map opens, choose the connector that the flow will use and complete the setup fields shown by the template.
4. Select Fork & Map. If no mapping or setup is required, Use Template forks the template immediately.

The platform copies the template name, generates a unique flow code and creates the flow in draft status. It offers an existing connector only when that connector was created from the expected connector template. A name match alone is not enough.

When a template asks for WMS goods owner ID, enter the owner whose stock or orders belong to this integration. For an order-import template, Marketplace ship-to ID identifies the WMS customer or destination used for imported orders. Verify both values in the target tenant before activation.

Create or import a flow

On Flows:

• select + New to create an empty flow;
• select Import to upload a flow JSON file;
• use the search field to find a flow by name or code.

For a new flow, enter Code, Name, Trigger and an optional Description. Trigger choices are Manual, Schedule (cron), Webhook and Event.

Import the file into a test tenant first. Review its connectors, variables, mappings and trigger before activation; an exported flow design does not include a guarantee that the destination tenant has matching credentials or configuration.

Edit in Flow Builder

Select Builder for a flow. An active flow is read-only; use Pause to edit before changing it.

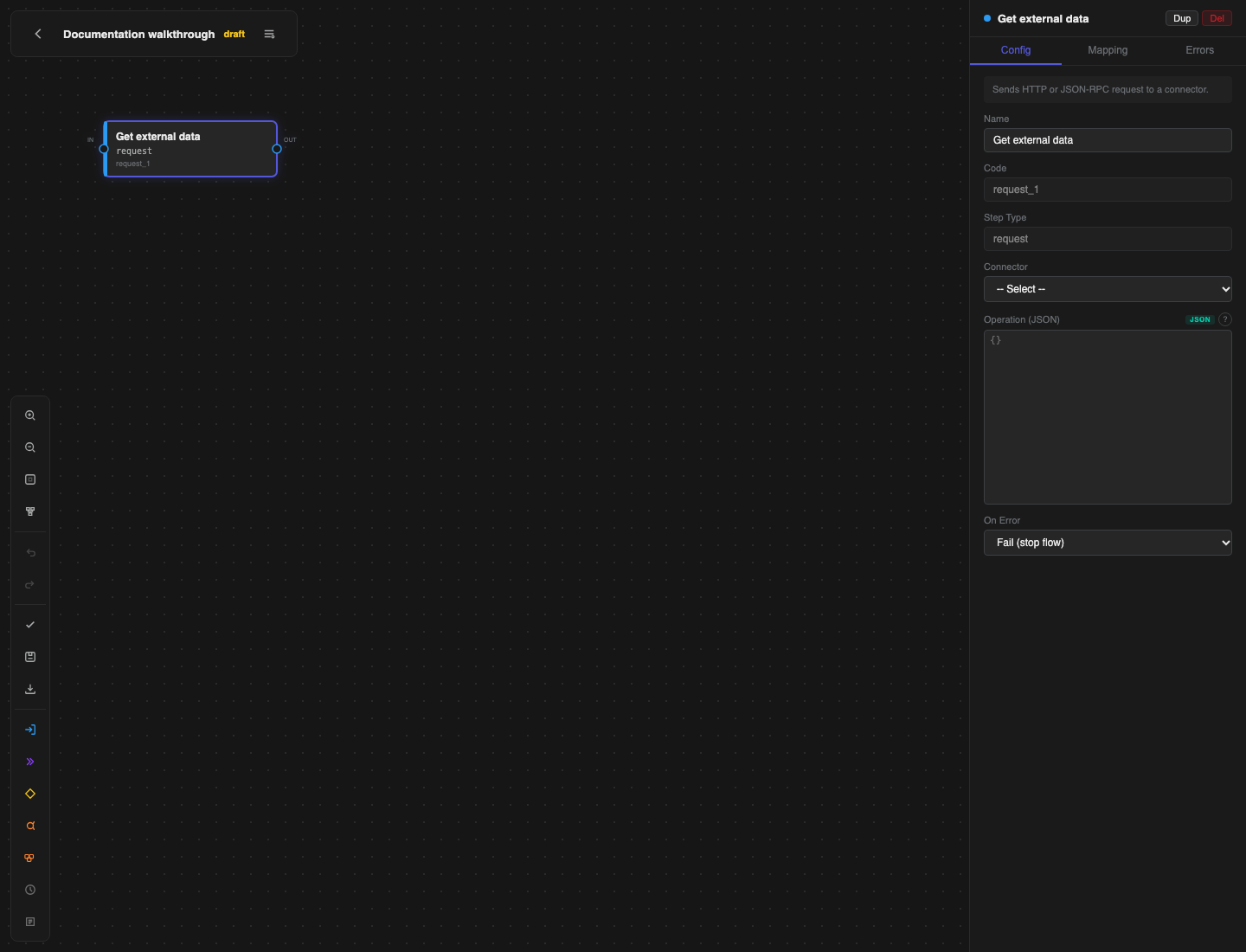

Caption: Flow Builder. Focus: the palette adds steps, the graph shows execution order and the inspector configures the selected step.

Build the graph

1. Add a step from the palette.
2. Select the step and complete the Config tab.
3. Drag from an output port to the next step's input port.
4. For a condition, connect each branch to its destination.
5. Select Auto-layout when you want the platform to arrange the graph.

Common step types:

Step	Use it for
Request	Call a connector operation or JSON-RPC method.
Transform	Reshape values between steps.
Condition	Choose a branch from a Jinja2 expression.
Loop	Run a group of later steps for each item in a list.
Batch	Split a list into bounded groups.
Delay	Wait for a configured number of milliseconds.
Log	Record a diagnostic message without exposing secrets.

Useful keyboard controls are Delete or Backspace to remove a selected step or edge, Ctrl/Cmd+D to duplicate a selected step and Esc to clear the selection.

Configure a request

On a Request step:

1. Choose Connector.
2. Choose an available RPC method when the connector publishes an OpenRPC catalogue, or enter the operation JSON required by the transport.
3. Configure the input and output on the Mapping tab.
4. Configure On Error on the Config tab.
5. Configure Request Retry Override and Timeout (seconds) on the Errors tab.

Do not enable retries for a mutating remote operation unless the provider supports safe repeats or an idempotency key. The platform does not automatically assume that a write can be repeated safely.

Map data

• Input Mapping reads values with JSONPath and supplies them to the step.
• Output Mapping writes selected response values into named flow variables.
• Inline Transform can filter, map or rename values between the two sides.

Keep mappings explicit. If a value is required by a later step, give it a clear variable name and validate its presence before the remote call.

Configuration values can be referenced through system and tenant namespaces. See Configuration, access and API.

Handle errors

Choose one On Error action for the result after any request-level attempts are exhausted:

Action	Result
Fail (stop flow)	Stop the run and mark it failed. Use this for required work.
Skip (continue)	Record the step outcome and continue. Use only when the step is optional.
Fallback (jump to fallback step)	Continue at a later fallback step.

Request Retry Override can change maximum attempts, backoff and retryable status codes. It runs before On Error and applies only when the step's Operation contains "retry_safe": true. An unsafe operation is attempted once. Timeout (seconds) limits the time spent on the step. A fallback must point forward to a later step so that the graph remains executable.

After an upgrade that removes the old step-level Retry action, existing steps that used it are changed to Fail (stop flow). Revalidate those flows. Add Request Retry Override only when the remote operation is safe to repeat; otherwise keep the single attempt and handle the failure through On Error.

Validate, save and activate

1. Select Validate flow.
2. Fix every error. Review warnings for unintended branches, mappings or resilience settings.
3. Select Save snapshot.
4. Optionally select Export JSON to keep a reviewed, portable design.
5. Return to Flows and change the status to active.

Activation performs validation again and saves an activation snapshot as one operation. If validation fails, the flow remains in its current draft or paused state.

Run, export or delete

• Run is available for an active flow and opens its result in Monitor.
• Export JSON exports the design for review or controlled import elsewhere.
• Del is available while the flow is draft or paused, but not while it is active.

Deleting a flow also removes its schedules, webhooks and run history. Export anything you need for audit or reuse before confirming deletion. The platform also refuses deletion while an execution is still running.

Recover while editing

Use Undo and Redo while the builder is open. Before a larger change, select Export JSON and keep the reviewed file with the change record. If you need to return to that design later, import it as a separate draft flow, compare it with the current flow and test it before replacing any production trigger.

If a run fails because of a credential or remote outage, fix and test the connector instead of changing an unchanged flow.
